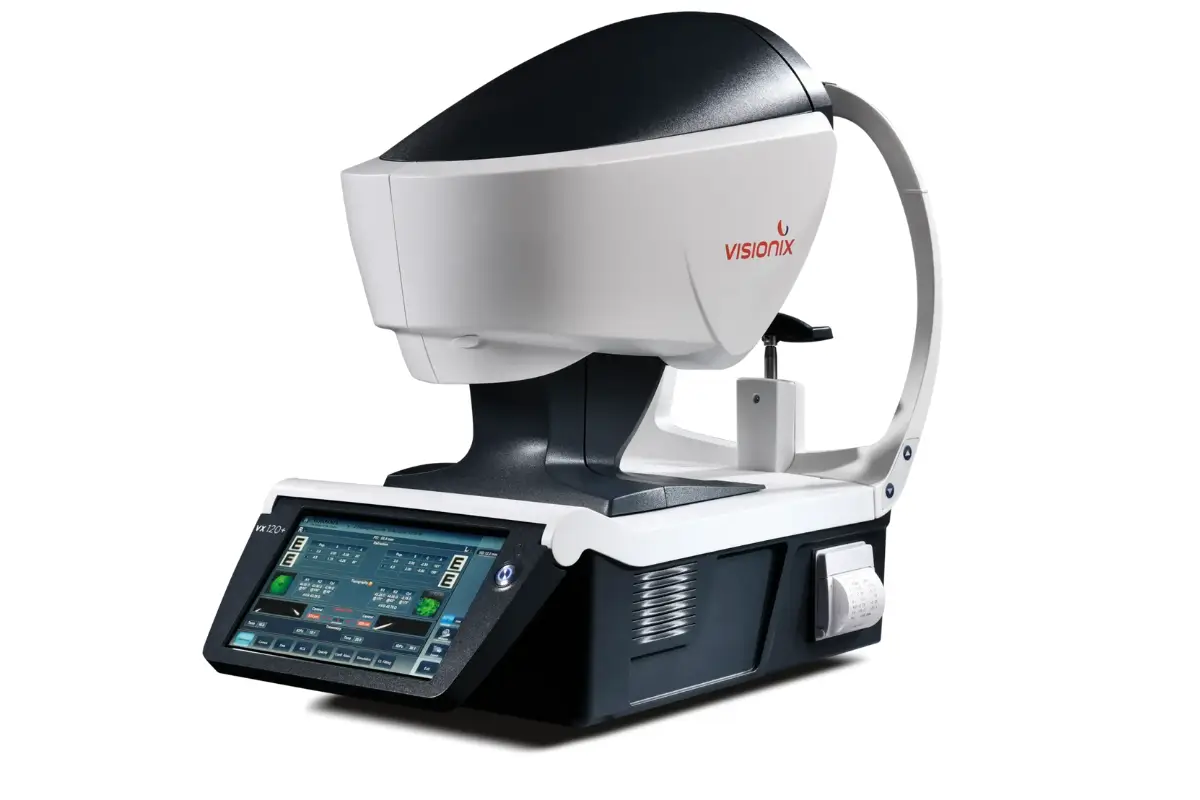

Visionix VX110 – Multi-Functional Automatic Eye Analysis Device

1. Comprehensive Features

📌 Automatic Refraction Measurement

• Fast and accurate measurement in just 0.2 seconds with a resolution of 0.01 D.
• Measurement range: sphere –20D to +20D, cylinder 0 to +8D, axis from 0° to 180°.
• Automatic XYZ alignment helps minimize operational errors.
• Provides objective results in both bright (Photopic) and dim (Mesopic) lighting conditions, facilitating effective comparison and establishment of day/night refraction.

🔬 Wavefront Aberrometry

• Utilizes advanced Shack-Hartmann technology.
• Accurately measures both low-order and high-order aberrations.
• Approximately 1,300–1,400 points recorded on a 7 mm pupil.
• Displays aberration maps in the form of Zernike coefficients, separating corneal, lens, and overall aberrations.
• Integrates visual simulation with PSF (Point Spread Function) and MTF (Modulation Transfer Function) to visualize the impact of aberrations on vision.

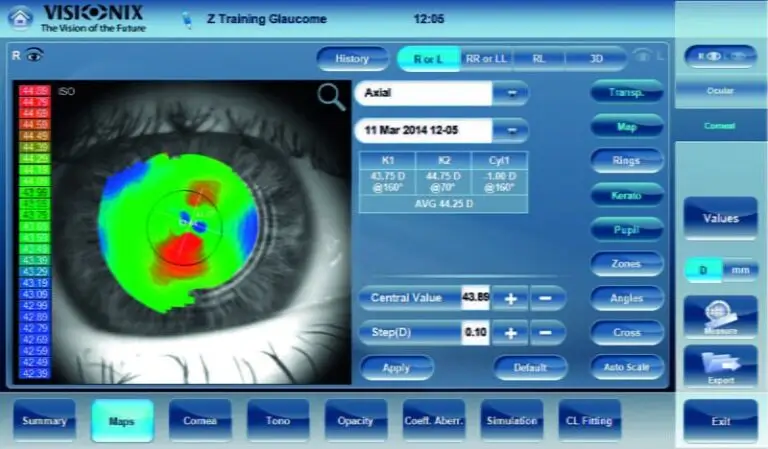

🌀 Corneal Topography

• Placido technology: 24 light reflection rings for superior analysis.
• 6,144 measurement points, over 100,000 reflected pixels processed.
• Measurement range of power from 37.5 D to 56 D, coverage area diameter from 0.75 mm to over 10 mm.
• 3D simulation of corneal curvature and color-coded topography maps.
• Supports full keratometry readings (SIM-K, eccentricity, curvature radius, meridian...) at Ø3, Ø5, and Ø7 mm regions.
• Analyzes corneal wavefront maps and simulates fluorescein contact lenses for Ortho-K or RGP designs.

🌙 Day & Night Vision

• Allows assessment of vision changes according to pupil dilation under different lighting conditions.
• Supports refraction analysis by pupil regions: 2 mm – 5 mm – 7 mm.
• Automatically simulates objective vision according to dilated pupils in low light, aiding in the design of night glasses or IOL fitting.

🧠 In-Depth Diagnosis

Keratoconus:

• Identifies and monitors through the KPI (Keratoconus Prediction Index).
• Automatically alerts for corneal abnormalities.
• Automates the analysis of cone topography, aiding in early disease detection.

Cataract:

• Analyzes cataract opacity through retroillumination.
• Classifies cataracts according to the LOCS II and LOCS III standard scales.
• Separately evaluates intraocular aberrations (lens) and corneal aberrations.

2. Contact Lens Fitting Support

• Simulates fitting for RGP, Ortho-K, or multifocal contact lenses.
• Displays sagital maps, tear film, and lens sag maps.
• Combines corneal topography, refraction, and aberrations to optimize vision decisions with glasses.

3. Interface & Software

• 10.1” multi-touch TFT screen, resolution 1024×600 px.
• Simple, intuitive interface allows for quick operation by hand or mouse.
• Automatically stores patient data, easily exports results, prints reports, configures templates.
• Allows remote diagnosis, analysis, storage, and sharing of results via local area network (LAN).
• Supports direct printing through an integrated printer or export via USB.

4. Hardware Configuration & Connectivity

5. Automation & Convenience

• Automatically measures 4 continuous measurements for both eyes in under 45 seconds.
• Automatically aligns the measuring head in three dimensions (XYZ) without manual operation.
• Multi-user interface, easily authorizes technicians to perform measurements.
• Displays maximum pupil area: Ø14 mm; blue light 455 nm supports surface assessment.

6. Clinical Applications

• Specialized refraction and eye measurement clinics.
• Facilities treating keratoconus, early cataracts, dry eye.
• Contact lens fitting centers – Ortho-K – presbyopia.
• Preoperative preparation and monitoring for refractive surgery (LASIK, PRK).
